Ledzeal Aqua Smart Controller is specially designed to open your new aquarium life

 --- All aluminum made with metal wiredrawing treatment to bring fine texture

 --- Exclusive design, big LCE screen, easy to operate

--- Wired or Wireless Smart controller optional

--- Silver and black color optional

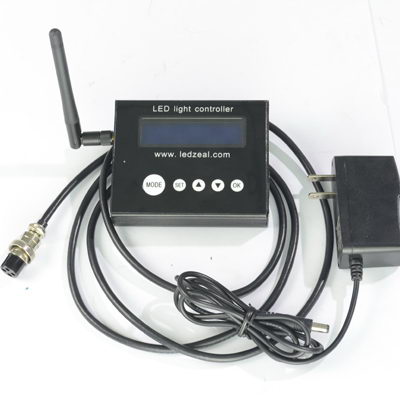

                                                Main Interface of the smart controller

1. Mode: Change mode.2.SET: Change setting item.

3. UP: Raise setting value.

4. DOWN: Lower setting value.

5. OK: Confirm setting and changeto other setting items.

6.  For power supply input port.

7. Signal output port.

8. WIFI antenna port.

9. LCD screen

Pre-programmed Modes

1.    Sunrise,Sunet mode

The light intensity of each channle’s led are gradually changing from 0~100% at 24 hours to simulate

the sunrise, sunset, moonlight.

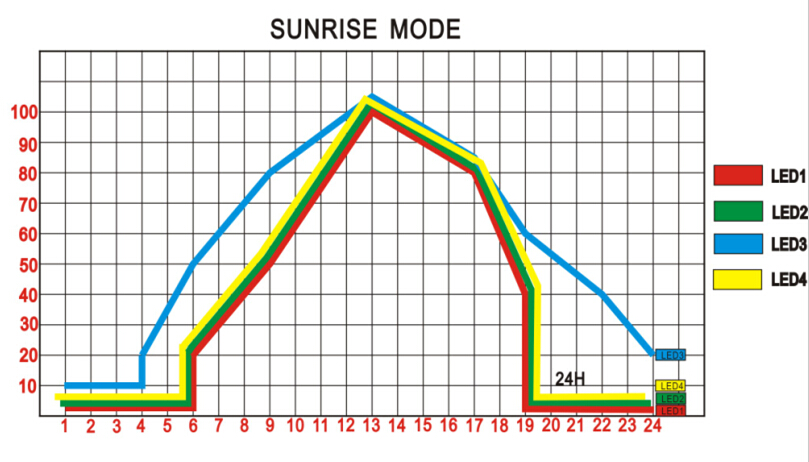

Light intensity&time changing of each channel in 24 hours one day

The standard led channels color configuration are as bellows: (Per cluster 24 pcs*3W)

Channel 1 : 6 pcs 470nm Blue 3 watt high power led

Channel 2 : 6 pcs 12000K cool white 3 watt high power led

Channel 3 : 4 pcs 470nm Blue +2pcs 410nm violet 3 watt high power led

Channel 4 : 4 pcs 450nm Royal Blue+1 pcs 510nm Green+1pcs 630nm Red 3 watt high power led

2. Cloud Mode

Each channel’s led is cyclic fading from one to next (channel 1 to 4) to simulate the change

of light by cloud moving daily at the time that user set "turn on".

3. Flash mode

Each channel’s led cyclic flash 3 times per second from one to next (channel 1 to 4) to simulate

the thunder daily at the time that user set "turn on".

4. Show mode


It is the combination of cloud mode and thunder model showed above to help you quick view of Malibu Controller features.

5. DIY mode

--- 8 time points max settable donw to minute for per channel

--- 0~100% light intensity settable down to 1%

--- 4 channels programmable individually

--- Light intensity gradually goes up or down from one point to next

--- Upgraded to 3 sets of DIY modes switchable now


6.Manual mode

 Manual mode is the easiest way to dim any led channel instantly from 0~100% by 1% instantly.

Diasy-Chain Connecting

The controller is able to build a daisy chain system with as much as 250 units of any Malibu S series led aquarium light.

Cable connected with “Data in” and “Data out” one to next unit, all units can be programmabled simultaneously.

Ledzeal R&D team supported
