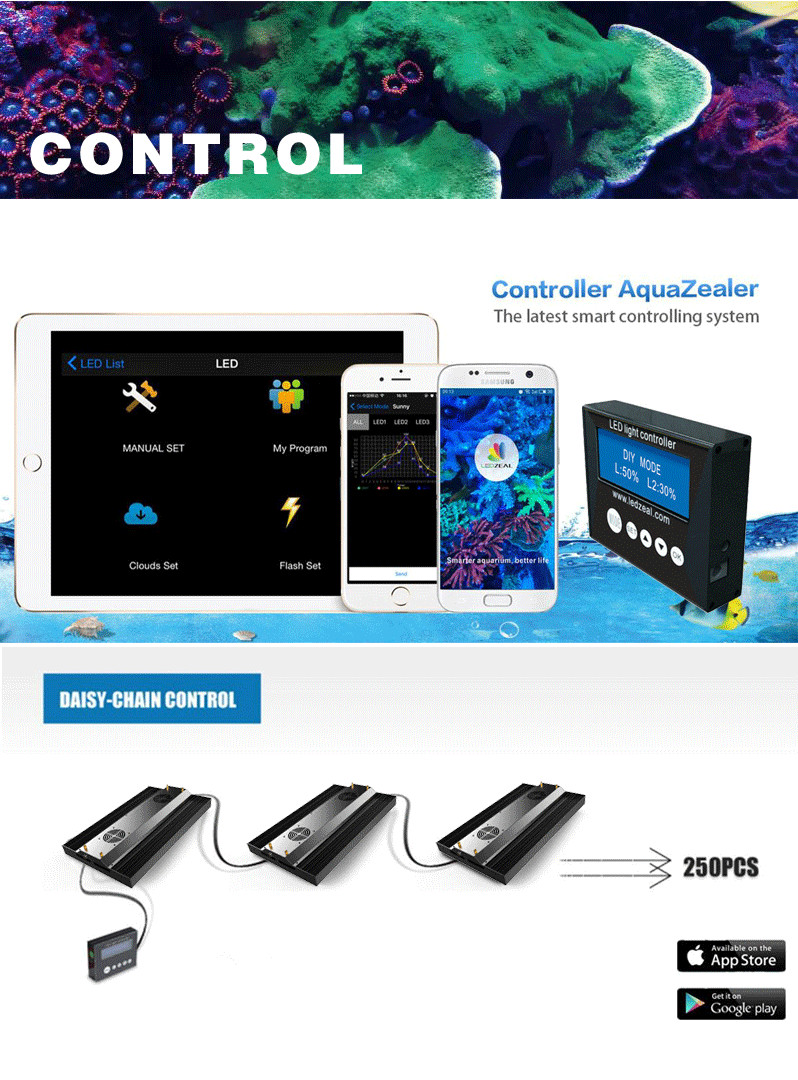

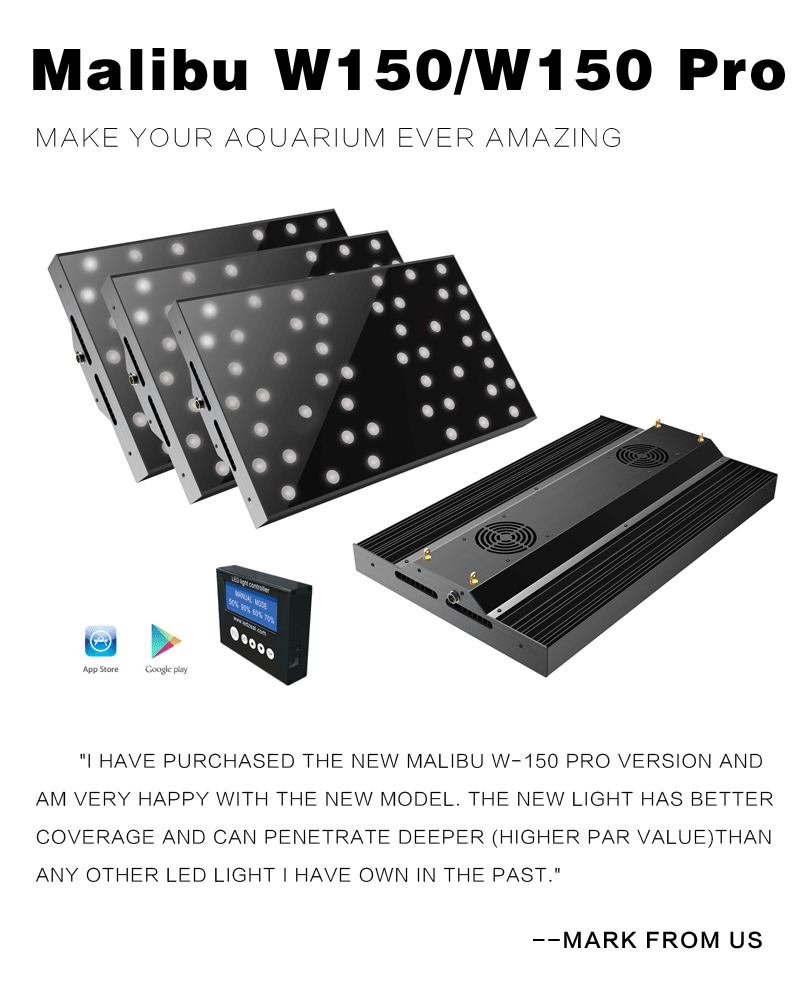

AquaZealer is our latest Wifi controller to enable the unit work with iOS&Android devices , you can either program the

units on your phones or on the controller . The controller  displaying the light status all time as well as supports

daisy-chain controlling system for your larger tank or aquarium project.

                                                         AquaZealer Modes

 Manual Mode                                                             My Program Mode

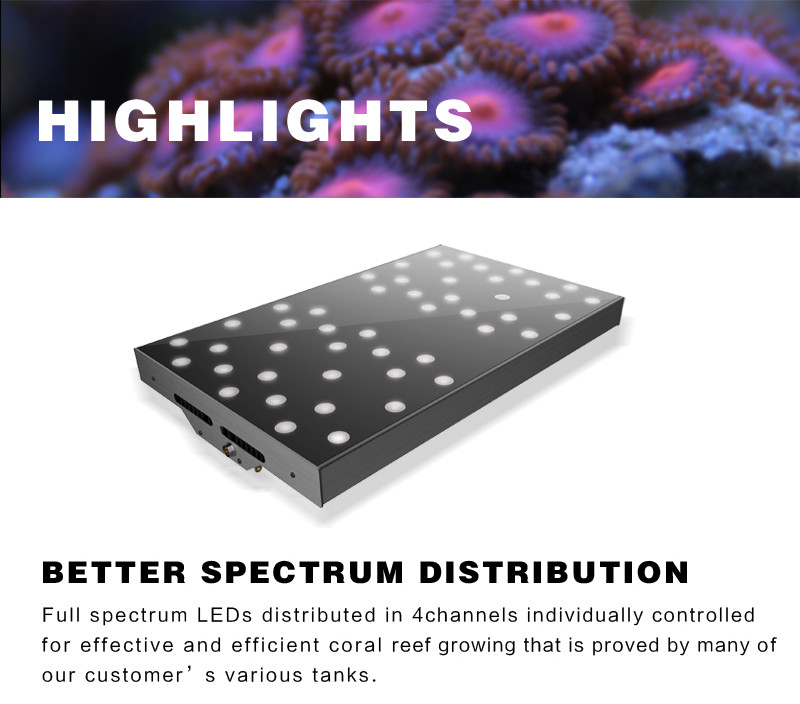

      4 Channels fully dimmable from 0~100%                            Pre-programmed Modes and DIY program modes

 Flash Set                                                                     Cloud Set

       3 flash effect time points settable                                         3 cloud effect time points settable

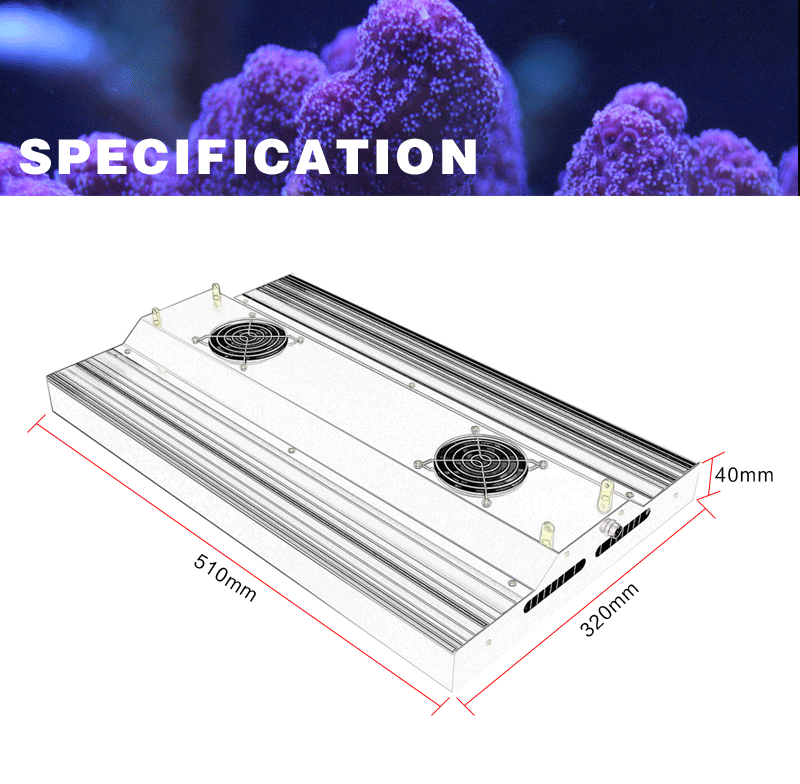

Length: 510mm (20 inch)

Width: 320mm  (12.5inch)

Depth: 400mm/600mm (1.5 inch)

Power output : 140~150W (W150) / 210~220W(W150 Pro)

Weight: 6.5KG

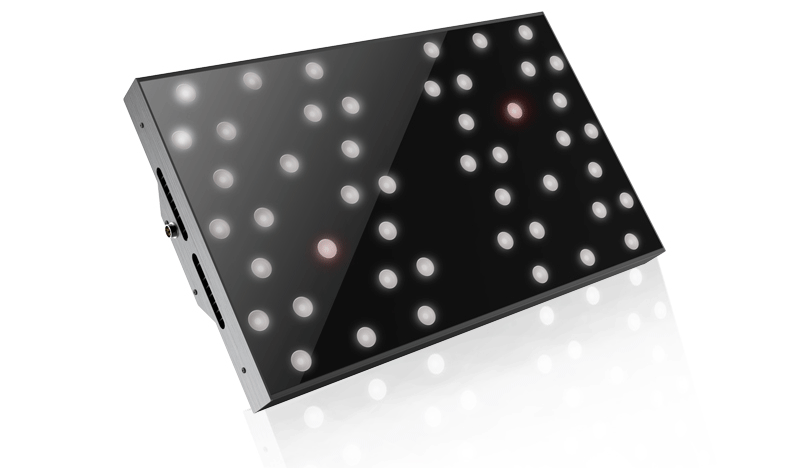

LEDs : 48pcs X 3W (W150) / 48pcs X 5W (W150 Pro)

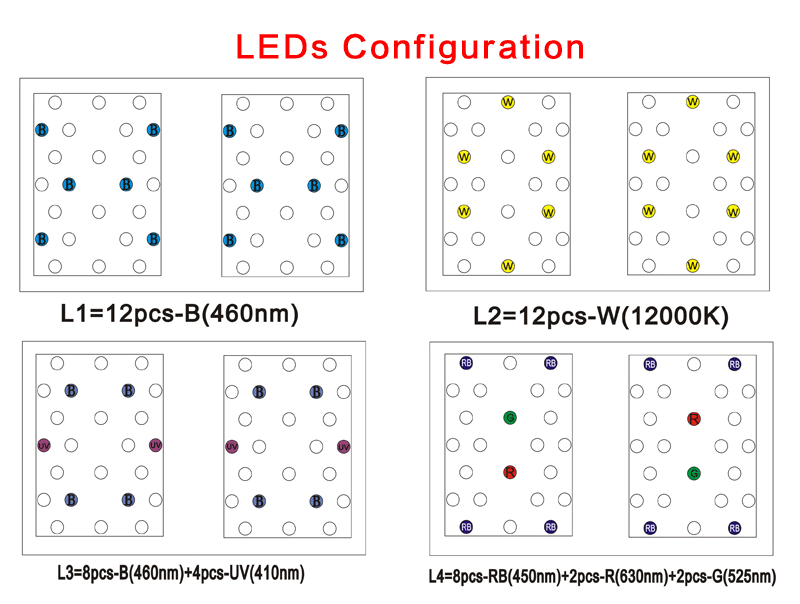

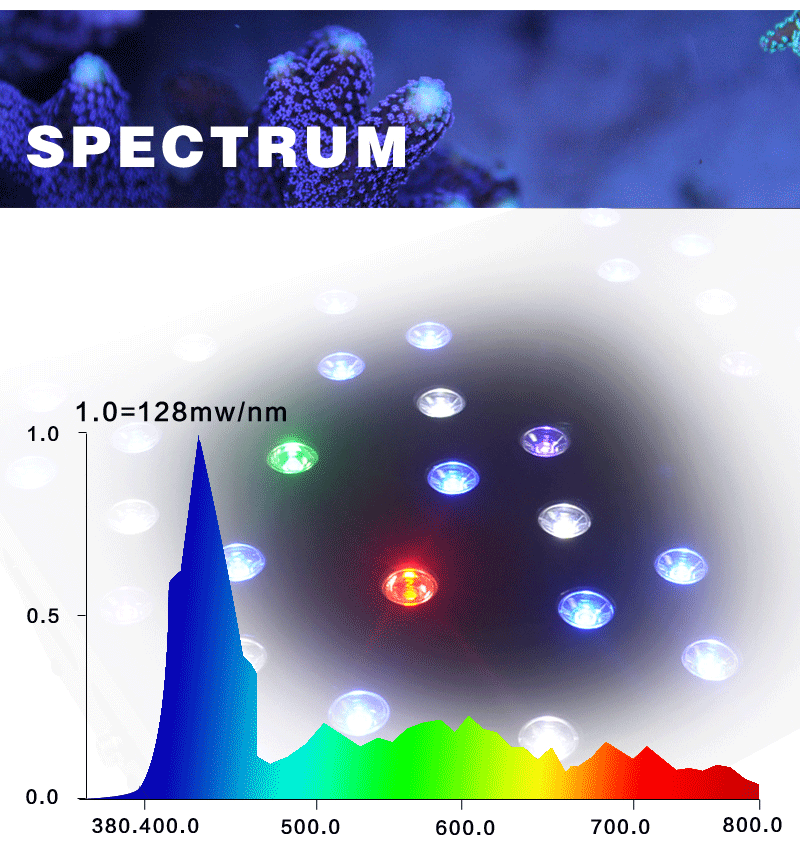

LED Colors: 20pcs Blue(460~470nm) , 8pcs Royal Blue(450~460nm)

                     12pcs Cool White (12000K),  4pcs UV (410~420nm)

Input voltage /frenquency : 110V~220V / 50~60HZ

Power cord length :180cm (6 feet)

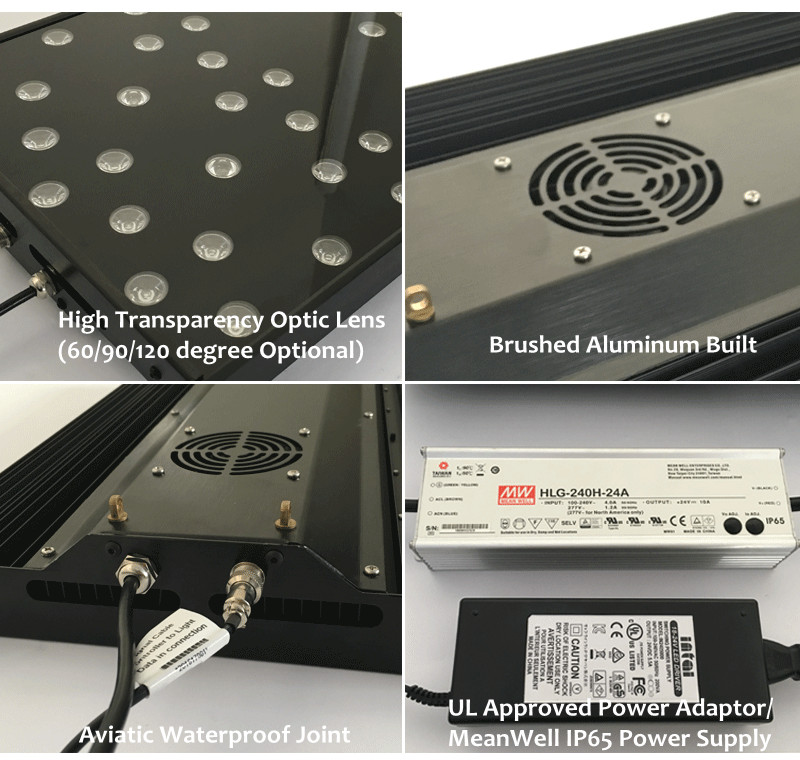

 PSU:UL Approved Power Adaptor / MeanWell IP65 CLG-150/MeanWell IP65 HLG-240

What is In package :

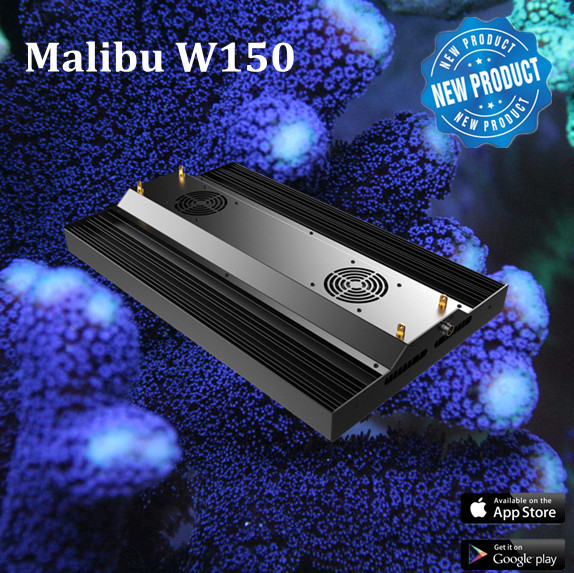

1 x Malibu W150 OR W150 Pro

1 x Power Supply / Adaptor

1 x Hanging Kit Stainless

1 x Power Cord US/AU/EU etc type

1 x Wifi controller (Optional)

1 x Interlink cable (Optional)

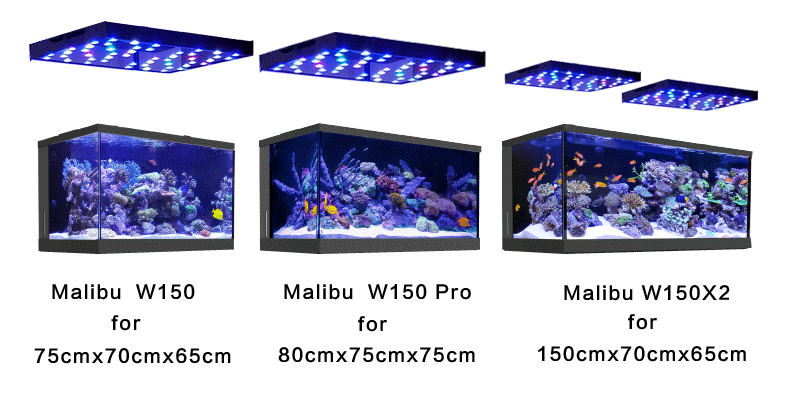

                                      The tank sizes recommended for the units

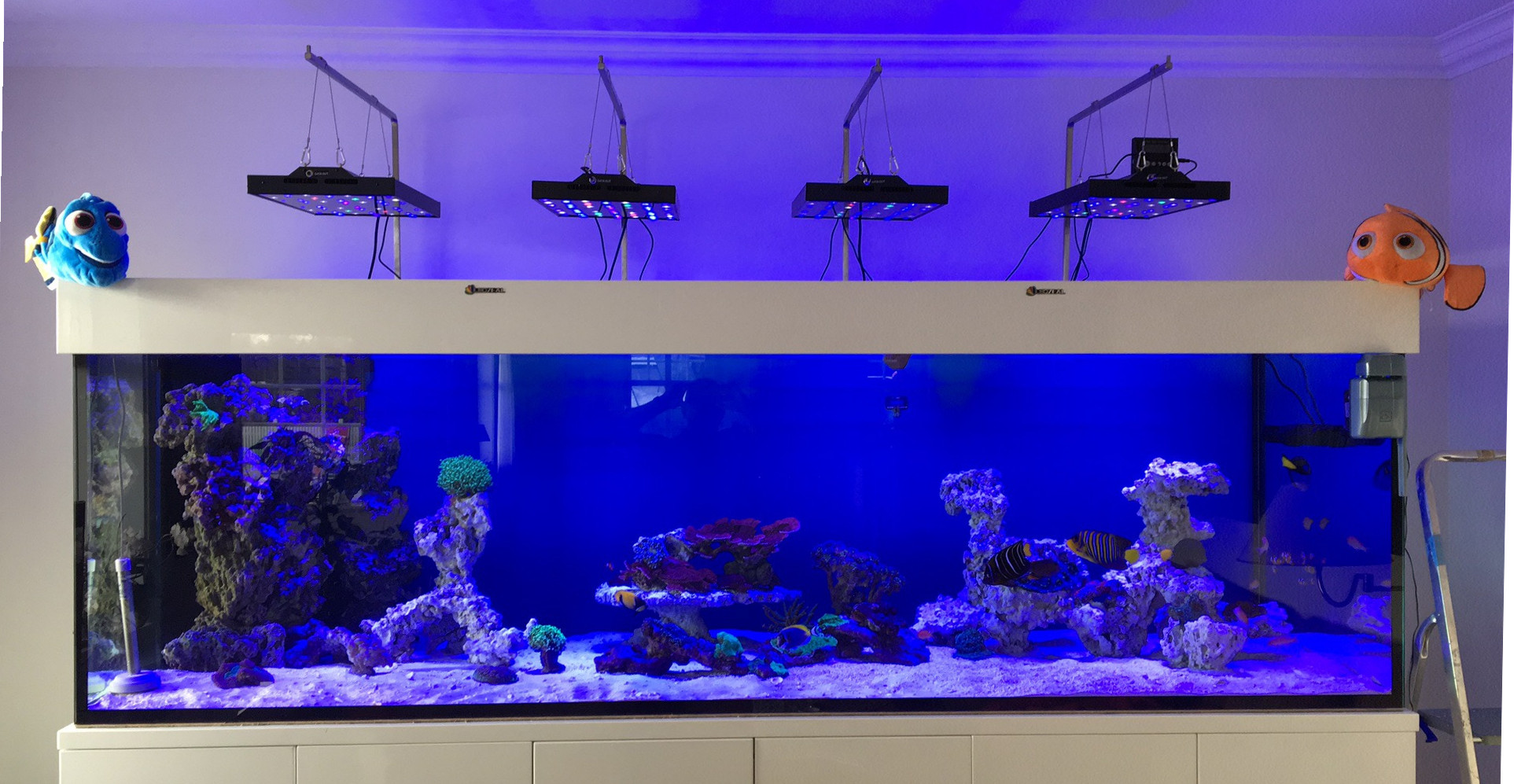

Customer‘s Tank Show :

 Tank dimension : 270 cm long X 100 cm wide X 80 cm deep,  Volume: 2160 liters

1. I am a newbie ,how do I chose the the right model for my tank ,S150, W150 or W150 Pro ?

Here are the  standard tank dimesnions that we suggestd for the models:

S150: 32 inch long, 22 inch wide and 24 inch deep

W150: 30 inch long, 26 inch wide and 24 inch deep
W150 Pro : 32inch long, 30inch wide and 30 inch deep

2. How do I install the unit for my tank ?

The unit comes with hanging kit in package as standard accessory for installment , it is free of charge.

3. Is W150 able to go  with the fresh water planted tank ?

 Yes, it has the LED configuration specially designed for planted tank.

4.Can I customize the LED configuration for the unit ?

 Yes, you can customized the LED configuration , send us your idea about it and

 we will work it out and confirm with you .Please contact us support@ledzeal.com

5. How long it will take to ship out if I place the order now ?

2~3 days for small order less than 10 units, 7~10 days for bigger order.
